| LANTEC mass transfer media transcends all other media with impressively high heat and mass transfer rates and remarkably low resistance to gas flow. Exhaustively modified and tested LANTEC's media reach unparalleled performances. We challenge you to find a more sound and more cost effective media. Then, we invite you to discover what we already know. | |
 All
of LANTEC packings have :
Extremely large and effective surface area.
Liquid
dispersing ability (many drip points)
Flow through
body for flow pressure drop
Enhanced
surface wettability
Non-nesting/non-interlocking
desing |
|
| Engineering
Breakthrough LANTEC Ceramic Tower Packings Outperforms All Other Ceramic Media for RTO System! |
|
| Greatly
Reduces Capital & Operating Costs! |
|
| Extremely
High Thermal Efficiencies with Much Reduced Pressure Drop! |
|
| Providing
Flexibility in Design Variations! |
|
|
 |
|
| 1. LanteComb-H (Cordierite Ceramic) | ||
 |
LanteComb-H
is a new, the most energy efficient and less pressure drop generating
heat recovery media for Regenerative Thermal Oxidization (RTO) than MLM
now. The
standard dimension of LanteComb-H is 150mm x 150mm x 150mm. LanteComb-H
is a technological breakthrough in structured heat recovery media for
Regenerative Thermal Oxidization (RTO). |
|
| 2. MLM (Multi-Layer Media) | ||
 |
LANTEC'S MLM is efficient and cost-effective heat-recovory media for Resenerative Thermal Oxidization (RTO) systems. Operating data confirms that LANTEC'S new MLM (Multi-Layer Media) is the first substantial improvement over 1" saddles and monolith in decades. The new MLM outperforms all other ceramic media in heat exchange, energy efficiency, pressure drop, and reducing capital and operating costs. MLM has been field and laboratory tested, and the results have been outstanding. MLM heats up and cools down faster; compared with saddles, the thin, layerd shape of MLM has much more of its material within 1mm for the surface. Also, because of the inter-connected channels (as opposed to isolated single channels in monolith) gas flows in all directions. This will enhance heat transfer as well as reduce plugging tendencides. LANTEC'S development of MLM is an engineering breakthrough. With the reduced operating costs, and greater efficiency, MLM will soon pay for itself. |
|

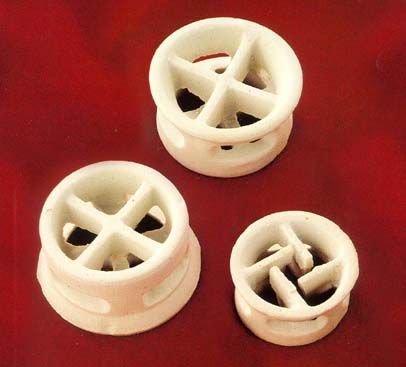

| 3. CERAPAC (Ceramic) | ||
 |
Available in 3 sizes (1-1/2", 2" & 3"), a high-performance random dumped tower packing for distillation, gas absorption, fume scrubbing, and heat transfer Where conditions of high temperatures and/or high corrosiveness demands the ultimate resistance of ceramic. Users of CERAPAC can benefit from higher mass-transfer and low pressure-drop. |
|

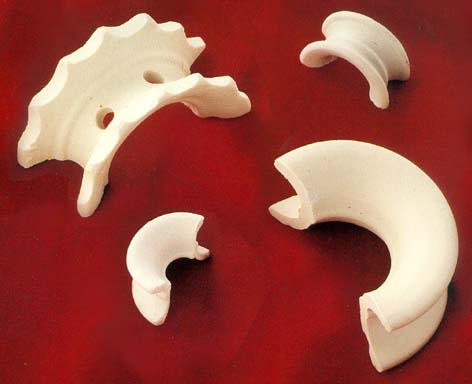

| 4. CERAMIC SADDLE | ||
 |
A good low cost alternative, saddle are available in 6 sizes (1/2", 1", 1-1/2", 2"&3").
|
|
 |
||
|
Regenerative Thermal Oxidizer |
||
